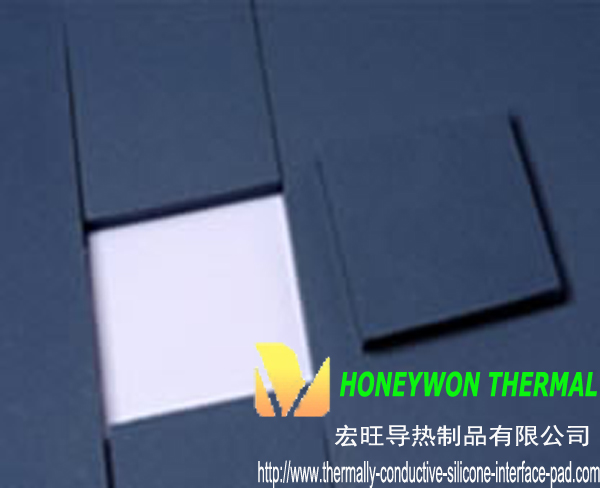

Thermally Conductive Silicone Interface Pad: HWP-100

产品型号：HWP-100

Thermally Conductive Silicone Interface Pad Mat Sheets

Silicone Interface Heat Transfer Pad Mat Sheets

Silicone Interface Cooling Pad Mat Sheets

Silicone Interface Pad Mat Sheets Cooler

产品描述

Thermally Conductive Silicone Interface Pad Mat Sheets,Silicone Interface Heat Transfer Pad Mat Sheets,Silicone Interface Pad Mat Sheets Cooler,Silicone Interface Cooling Pad Mat Sheets

Technical Data:

Product Features:

-Good thermal conductivity
-High conformability and cost effective
-Shock absorbing and naturally tacky
-Electrically insulating

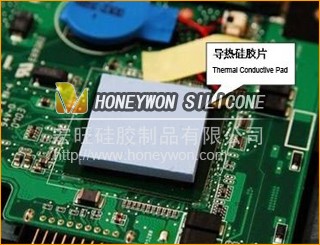

-it is easy to fill in air gaps between PC board and heat sinks or a metal chassis

Product Applications:

- Between electronic components such as Semiconductor, IC, CPU.MOS and heatsink.
- Led Lighting, LCD TV, Telecom device, wireless Hub,NB, PC, power supply etc
- Cooling Module, Thermal module, in all applications where a metal housing is used as heatsink.

Product description:

Typical Properties of HWP100
Properties	Units	HWP100	Test Method
Construction & Composition	---	Silicone & Ceramic filled	---
Color	---	Dark Blue	Visual
Thickness Range	mm	0.5~12.0	ASTM D374
Hardness	Shore C	25	ASTM D2240
Density	g/cc	2.2	ASTM D792
Tensile Strength	KN/m	0.75	ASTM D412
Elongation	%	90%	ASTM D412
Continuous Use Temp	℃	-40 to 150	EN344
Breakdown Voltage	Kv/mm	≥4.0	ASTM D149
Volume Impedance	ohm-cm	1.5*10¹⁶	ASTM D257
Dielectric Constant	1MHz	4.87	ASTM D150
Weight Daminify	---	≤0.5﹪	@150℃ 240H
Flame Rating	----	V-0	UL 94
Thermal Conductivity	W/m.k	1.0	ASTM D5470
UL, RoHS, REACH	----	Compliance	----

Sheet sizes:

Standard sheet size:200*400mm,330*330mm; Custom Die-cut parts available；Available with or without PSA

HWP-100 Thermally conductive Silicone Interface Pad

is naturally tacky, requiring no adhesive coating to inhabit thermal performance, It can also be with a rubber-coated fiberglass carrier becoming one side tacky and no tacky on other side to allowing easy material handing and installation.
