产品描述
Abnormal-Shaped Silicone Rubber Heat Pads Strips,square heaters, rectangular heaters,round heaters,triangle heaters,trapezoid heaters,cirque heaters, polygon silicone rubber heaters.Abnormal-Shaped Silicone Rubber Heaters,Silicone Rubber Heaters have wire-wound or etched foil heating elements protected by fiberglass-reinforced silicone rubber vulcanized and compressed at high temperature and press.They are thin, bendable and shaped to fit almost any equipment. Heat can be applied to the most complex shapes, geometries, curves and pipes conceivable without sacrificing efficiency or dependability. Silicone rubber heating pads mats blanket belts sheets can be made in any flat shape as square, rectangular,round,triangle,trapezoid,cirque, polygon silicone rubber heaters,etc. by die-cut even with holes and gaps or cuts.
Technical Parameters:
1 ）Maximum temperature resistance of insulator：250℃
2 ）Maximum operation temperature： 200℃
3 ）Insulation Resistance：≥500 MΩ/DC 1000V
4 ）Breakdown Voltage：≥ AC1500v/5S
5 ）Capacity Tolerance：±5%
6 ）Temperature range: -60℃—250℃ continuous heating; Heating element: Available with either
etched foil or wire-wound elements:
7 ）Dimension:Maximum 1.2m×Xm Minimum 15mm×15mm; Thickness 1.5mm（Thinnest 0.8mm，
Thickest 4.5mm）Lead wire Length:Standard 130mm.
INSTALLATION:
1 ） with backing PSA (Pressure Sensitive Adhesive or called self adhesive, self stick adhesive)
as 3M PSA
2 ） with vulcanization or curing and compression at high temperature and press
3 ） with spring and hole or eyelet
4 ） with clamps
BENEFITS:
1 ）Heating evenly,accurate and adjustable
2 ）various shapes, holes, cutouts, profiled watt densities and multiple voltages
3 ）Put heat exactly where it is required
4 ）High dielectric strength, flexibility, bendable and cost effectiveness.
5 ）Resistance to temperature extremes, moisture, weathering, radiation, fungus and chemical
attack
6 ）Heat can be applied to the most complex shapes, geometries, curves and pipes conceivable
without sacrificing efficiency or dependability.
7 ）Easily bonded and/or mechanically mounted, even onto the curving surface.
APPLICATION:
1) Thermal developing in graphic imaging or heating transfer printing equipment;
2) Prevent condensation in motors or instrument cabinets;
3) Freeze or condensation prevention in housings containing electronic equipment,
for examples: liquid battery,traffic signal boxes, automatic teller machines, temperature control
panels, gas or liquid control valve housings
4) Composite bonding processes
5) Semiconductor process heating
6) Food service equipment
7) Airplane engine heaters and aerospace industry
8) Drums and other vessels and viscosity control and asphalt storage
9) Medical equipment such as blood analyzers, medical respirators, test tube heaters, etc.
10) Curing of plastic laminates
11) Computer peripherals such as laser printers, duplicating machines
Notes: Voltage,wattage,size and shape can be customized.(as cone,ellipse shape etc.)

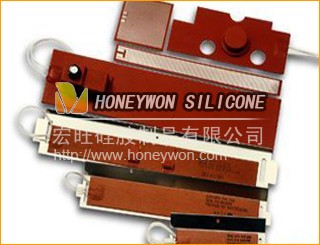

Abnormal flat shape of silicone heaters by pictures show:

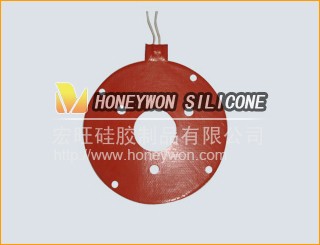

Abnormal shape Silicone rubber pad heaters for cone 3D printers silicone hotbed with holes for fixing

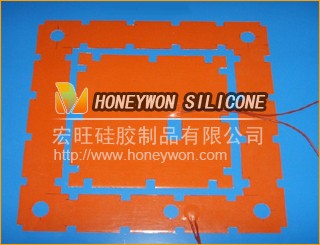

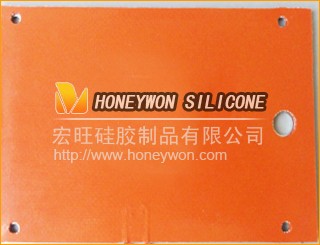

Silicone rubber panel heaters with holes silicon mat heater with gaps and holes
