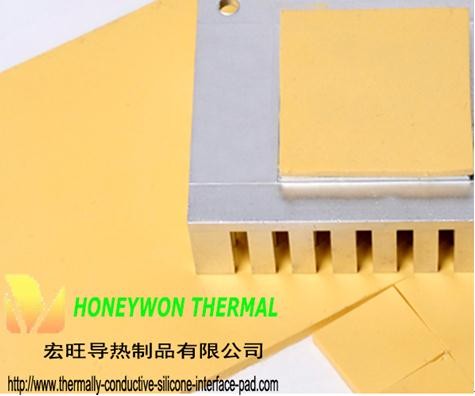

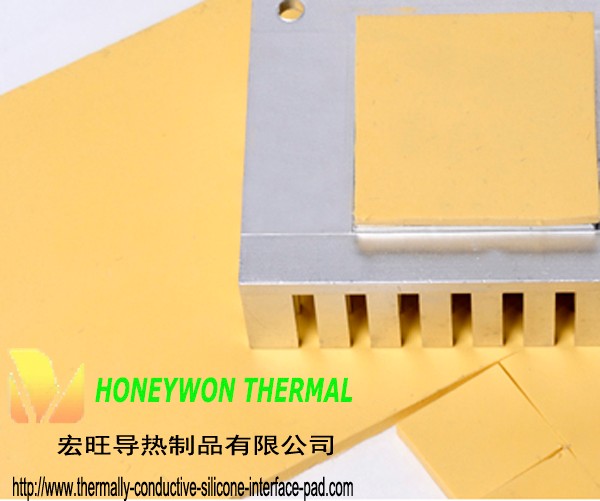

Heat Transfer Silicone Sink Pad HWP-250

Product Item：HWP-250

Thermally Conductive Silicone Interface Pad Mat Sheets

Silicone Interface Heat Transfer Pad Mat Sheets

Silicone Interface Cooling Pad Mat Sheets

Silicone Interface Pad Mat Sheets Cooler

Description

Thermally Conductive Silicone Interface Pad Mat Sheets,Silicone Interface Heat Transfer Pad Mat Sheets,Silicone Interface Pad Mat Sheets Cooler,Silicone Interface Cooling Pad Mat Sheets,Cooling Silicone Interface Pad,thermally conductive interface silicone pad,thermally conductive silicone gap filler,Heat Transfer Silicone Sink Pad: HWP-250

Technical Data:

Heat Transfer Silicone Sink Pad: HWP-250

Product Features:

-Good thermal conductivity
-High conformability and cost effective
-Shock absorbing and naturally tacky
-Electrically insulating
-it is easy to fill in air gaps between PC board and heat sinks or a metal chassis

Product Applications:

- Between electronic components such as Semiconductor, IC, CPU.MOS and heatsink.
- Led Lighting, LCD TV, Telecom device, wireless Hub,NB, PC, power supply etc
- Cooling Module, Thermal module, in all applications where a metal housing is used as heatsink.

Product description:

Typical Properties of HWP250
Properties	Units	HWP250	Test Method
Construction & Composition	---	Silicone & Ceramic filled	---
Color	---	Light Yellow	Visual
Thickness Range	mm	0.5~5.0	---
Hardness	Shore C	25	ASTM D2240
Density	g/cc	2.93	ASTM D792
Tensile Strength	KN/m	0.4	ASTM D412
Elongation	%	72%	ASTM D412
Continuous Use Temp	℃	-40 to 150	EN344
Breakdown Voltage	Kv/mm	≥5.0	ASTM D149
Volume Impedance	ohm-cm	3.2*10¹⁶	ASTM D257
Dielectric Constant	1MHz	6.3	ASTM D150
Weight Daminify	---	≤0.5﹪	@150℃ 240H
Flame Rating	---	V-0	UL 94
Thermal Conductivity	W/m.k	2.5	ASTM D5470
UL, RoHS, REACH	---	Compliance	---

HWP-250 Heat Transfer Silicone Sink Pad

is naturally tacky, requiring no adhesive coating to inhabit thermal performance, It can also be with a rubber-coated fiberglass carrier becoming one side tacky and no tacky on other side to allowing easy material handing and installation.

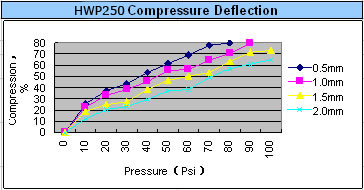

Percent Deflection Vs Pressure
