silicone rubber foam pad

Description

silicone rubber foam pad,silicon foam pad,silicone rubber sponge sheets,silicone sponge mat,silicone rubber sponge blanket,silicone rubber sponge roll,silicone rubber foam pad,silicone rubber foam mat,silicon rubber foam sheets,silicone rubber foam blanket,silicone rubber foam panel,silicone foam roll is  with  high  grade  silicone  rubber  material  and  inimitable  technique,  with good  character  of  high  temperature  resistant,  aging  resistant,  ozone  resistant,  insulation  property,  fuel oil  resistance,  lubes  resistance,  no  smell  and  wear  well.  High  compressibility  and  low  compression  set  over  a  wide  temperature  range,  and  good  acoustic  and  thermal  insulation  properties.  Apply  to  -50℃~+200℃ protect  and  heat  insulation  for  long  term  continuous  use  and  -70℃ ~  +260℃ for  intermittent  use  on  all  kinds  of  machine.

Features:

【Standard  size(mm)】 290*380*（5-15)  380*380*(5-15)      400*600*(5-  15)            500*500*(2-30) 500*600*(5-15)        600*800*(5-15)          1000*1000*(5-12)      1000*1200*(5-12)

【Special  size(mm)】Minimum  length:no  limitation    Maximum  length:no  limitation,or  in  roll minimum  width:no  limitation    maximum  width:1200    minimum  thickness:3.0    maximum  thickness:30.0

【Product  color】 red，gray，natural,white，black  or  any  other  required  color

【Application】 heat  transfer  print  equipment,electronics  and  electrics,machine  and  seal

【Character】high  temperature  resistant,  aging  resistant,  ozone  resistant,  insulation  property,  fuel  oil  resistance,  lubes  resistance,  no  smell  and  wear  well,  good  acoustic  and  thermal  insulation  properties.

■ Technical  Index：

style： open  cell

surface：Double  Fabric  Impression

Tear  strength：55Kn/m

Press  strength；30Mpa

elongation：100%

hardness：8-50  Shore  A

Temperature  range：-50-200C  continuously;  -70℃ ~  +220℃ for  intermittent  use

density：0.55-0.9g/cm3

Flame  resistance：94V-0

Dielectric  breakdown  voltage：>3KV

Dielectric  constant：5.5  KHz

Tensile  strength:  10-30psi

Volume  resistance：1.*1011  Ohm-m

Thermal  conductivity：0.1  W/M-K

Thick  tolerance: ±0.05mm~0.1mm

Physical property:

Silicone Rubber Sponge Foam Sheets by pictures show:

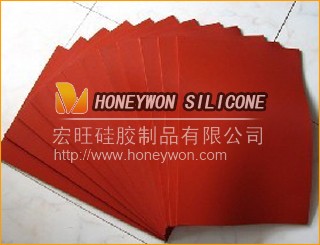

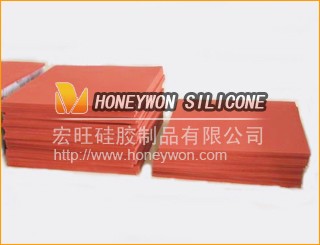

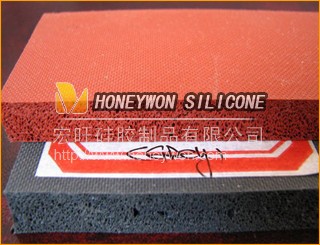

Silicone rubber sponge sheets                                                Silicone rubber foam  pad

Silicone rubber sponge mats pads                                              silicone rubber foam sheets mats

Silicone rubber sponge roll                                                    silicone rubber foam roll   

Silicone rubber sponge foam roll
