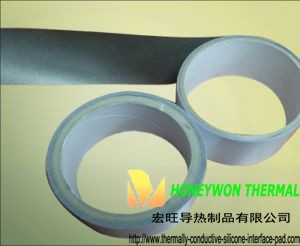

Thermally Conductive Double Adhesive Tape: HWT-100

产品型号：HWT-100

Thermally Conductive Double Adhesive Tape

thermally conductive silicone interface pad

thermally conductive silicone heat transfer pad

Thermally Conductive Tape

产品描述

Technical Data:

Thermally Conductive Double Adhesive Tape: HWT-100

Product Features:

Thermal conductivity: 1.0W/m-K

Available in thickness 0.005inch(0.127mm), 0.006inch(0.152mm), 0.008inch(0.20mm),

0.01inch(0.254mm), 0.015inch(0.381mm)”

Excellent adhesive property and thermal stability

Highly compliant and good wetting

HWT100 is a thermally conductive adhesive tape to provide a preferential heat transfer path between heat components and cooling devices; this tape is tacky pressure sensitive adhesive loaded with thermally conductive ceramic fillers that offer good adhesive and thermal performance.

Product Applications:

LED lighting and LED TV

Heat sink thermal model

Memory modules

High power IC

Control modules

VGA cards

Telecommunication hardware

Configurations Available and Options:

Roll form (1250x50M) and custom die-cut parts

Product description:

Typical Properties of HWT100
Properties	Imperial Value	Metric Value	Test Method
Reinforcement Carrier	Fiberglass	Fiberglass	---
Color	White	White	Visual
Thickness Range (inch/mm)	0.005”~0.015”	0.125~0.381	ASTM D374
Outgassing TML (Post Cured)	<1.0%	<1.0%	ASTM E595
Continuous Use Temp (F)/(C)	-22 ~ 302F	-30 ~150C
Dielectric Breakdown Voltage 50mm probe	80 VAC/mil	80 VAC/mil	ASTM D149
UL Flammability Rating	V0	V0	UL94
Rohs Compliant	Yes	Yes	SGS
Shelf life, year from date of production	1	1
Thermal Conductivity (w/m-k)	1.0	1.0	ASTM D5470
Peeling Adhesion	25C	80C	150C	PSCT-1
Peeling Adhesion	1750g/2.5cm	450g/2.5mm	230g/2.5mm	PSCT-1
Static Shear Test of Holding	25C	80C	150C	PSCT-7
Static Shear Test of Holding	1250g/2.5cm	1100g/2.5cm	1000g/2.5cm	PSCT-7
