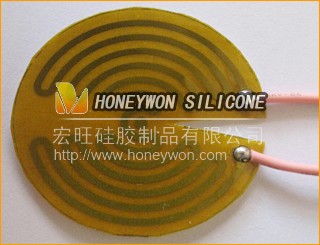

Round Circular Polyimide Kapton Heating Pad Mat Blanket

Product Item： Round-Circular-Polyimide-Kapton-Heating-Pad-Mat-B

Polyimide flexible film heaters

Kapton flexible film heaters

Polyimide Kapton Flexible Film Heaters

Polyimide Pad Heaters

Description

Round Circular Polyimide Kapton Heating Pad Mat Blanket，Abnormal Shape Polyimide Kapton Heating Mat Blanket,Polyimide flexible film heaters, or Kapton flexible film heaters, Polyimide Kapton Flexible Film Heaters,Polyimide Pad Heaters,Kapton flexible pad heaters, Polyimide flexible mat heaters Kapton flexible mat heaters ,polyimide blanket heaters kapton blanket heaters polyimide heating pad kapton heating pad ,polyimide heating mat kapton heating mats polyimide heating sheets kapton heating sheets are ideal for applications with space and weight limitations, or where the heater will be

exposed to vacuum, oil, or chemicals. These thin, flexible heaters are rugged, accurate and reliable.

Benefits of Polyimide Flexible Heaters:

• Thin,  lightweight  heaters  allow  you  to  apply  heat  where  it’s  needed,  reducing  operating  costs
• Etched-foil  heating  technology  provides  fast  and  efficient  thermal  transfer  for  increased  throughput
• Customized  options  (i.e.  SMT  components,  flex  leads  and  connectors)  offer  turnkey solutions  to  drastically  reduce

assembly time and increase productivity
• Custom profiling gives uniform thermal performance of the heating output to improve processing yields and

Productivity

• Heating  evenly,accurate  and  adjustable
• various  shapes,  holes,  cutouts,  profiled  watt  densities  and  multiple  voltages
• Put  heat  exactly  where  it  is  required
• High  dielectric  strength,  flexibility,  bendable  and  cost  effectiveness.
• Resistance  to  temperature  extremes,  moisture,  weathering,  radiation,  fungus  and  chemical
attack
• Heat  can  be  applied  to  the  most  complex  shapes,  geometries,  curves  and  pipes  conceivable
without  sacrificing  efficiency  or  dependability.
• Easily  bonded  and/or  mechanically  mounted,  even  onto  the  curving  surface.

Features  of  Polyimide/Kapton Flexible  Heaters:

• FEP  internal  adhesive  for  use  to  200°C  (392°F)
• UL  component  recognition  available
• Suitable  for  vacuum  environments  (NASA-RP-1061)
• NASA  approved  materials  for  space  applications  (S-311-P-079)
• Resistant  to  most  chemicals:  acids  and  solvents
• Radiation  resistant  to  10^6  rads  (custom  option)
• Very  small  sizes  available
• Fluid  immersible  designs  available  (not  standard)

Technical  specifications:

Temperature  range:  -100~200C,Upper  limit  with  0.003  inch  (0.08mm)  foil  backing  is  150C.
Material:0.002  inch  polyimide /0.05mm
Resistance  tolerance:  +/-10%
Dielectric  strength:  1000VRMS
Minimum  bend  radius:  0.03  inch  (0.8mm)
Lead  wire:  PTFE  insulated,stranded,
Currency  capacity  (based  on  100C  max  ambient  temperature):
AWG  30-3.0  A;  AWG  26-5.0  A;  AWG  24-7.5  A;  AWG  20-13.5  A.
Maximum  thickness  of  heater:  0.012  inch/0.3mm
Standard  thickness:  0.1~0.2mm
Configuration:  PSA  backing

APPLICATION:
1)  Thermal  developing  in  graphic  imaging  or  heating  transfer  printing  equipment;
2)  Prevent  condensation  in  motors  or  instrument  cabinets;
3)  Freeze  or  condensation  prevention  in  housings  containing  electronic  equipment,
for  examples:  liquid  battery,traffic  signal  boxes,  automatic  teller  machines,  temperature  control
panels,  gas  or  liquid  control  valve  housings
4)  Composite  bonding  processes
5)  Semiconductor  process  heating
6)  Food  service  equipment
7)  Airplane  engine  heaters  and  aerospace  industry
8)  Medical  equipment  such  as  blood  analyzers,  medical  respirators,  test  tube  heaters,  etc.
9)  Curing  of  plastic  laminates
10)  Computer  peripherals  such  as  laser  printers,  duplicating  machines
Notes:  Voltage,wattage,size  and  shape  can  be  customized.(as  cone,ellipse  shape  etc.)
