3D printer’s silicone rubber hotbed heat pad heat mat

Description

3D printer’s silicone rubber hotbed or heat pad heating pad heat mat heating mat hot plate heating blanket is made of high temperature  resistant, strong dielectric insulation silicone rubber with much even heat, very good fir 3D printer’s ink melt by various temperature under optional wattage and dimension.It can be pasted onto the aluminum plate of 3D printers with 3M PSA or fixed by screw with preformed holes or both. The NTC 100K 3950 thermistor onto the 3D printers gives it capability of temperature sense and temperature controlling by the thermostat connected. The 3D printer’s silicone rubber heat pad is flexible, can be used onto curving surface.

Features:

Color: Brick or orange or black

Material: Fiberglass fabric coated silicone rubber

Thickness:1.5MM

Temperature sensor: NTC 100K 3950 thermistor

Back PSA adhesive: 3M 468 200MP

Dimension: Optional size:100X100MM, 120X120MM,150X150MM,200X200MM, 250X250MM

                                     300X300MM,300x400MM,200X300MM,310X310MM, 400X400MM

                                     450X450MM,400X500MM,500X500MM,800X800MM

                 Any custom size is also available.

Voltage: 5V,  12V ,  24V,  36V,  110V,  115V,  120V,  220V,  230V,  240V,  380V

Wattage:20W 50W 100W 150W 200W 300W 400W 500W 800W 1000W 1500W 2000W etc.

Technical  Parameters:
1 ）Maximum  temperature  resistance  of  insulator：250℃
2 ）Maximum  operation  temperature： 200℃
3 ）Insulation  Resistance：≥500  MΩ/DC  1000V
4 ）Breakdown  Voltage：≥  AC1500v/5S
5 ）Capacity  Tolerance：±5%
6 ）Temperature  range:  -60℃—250℃  continuous  heating;  Heating  element:  Available  with  either
etched  foil  or  wire-wound  elements:

Product description and display:

Products pictures show:

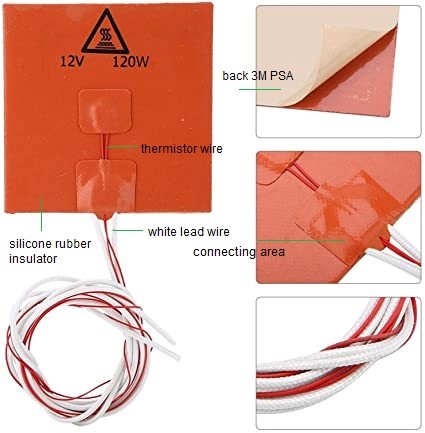

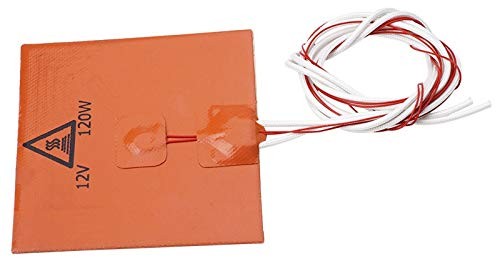

Cr-10 Ender Printer UL Silicone Hotbed                                                                    3D Printer Heating Pad

310X310mm  220/110V 750W                                                                               200X200MM   12V  120W

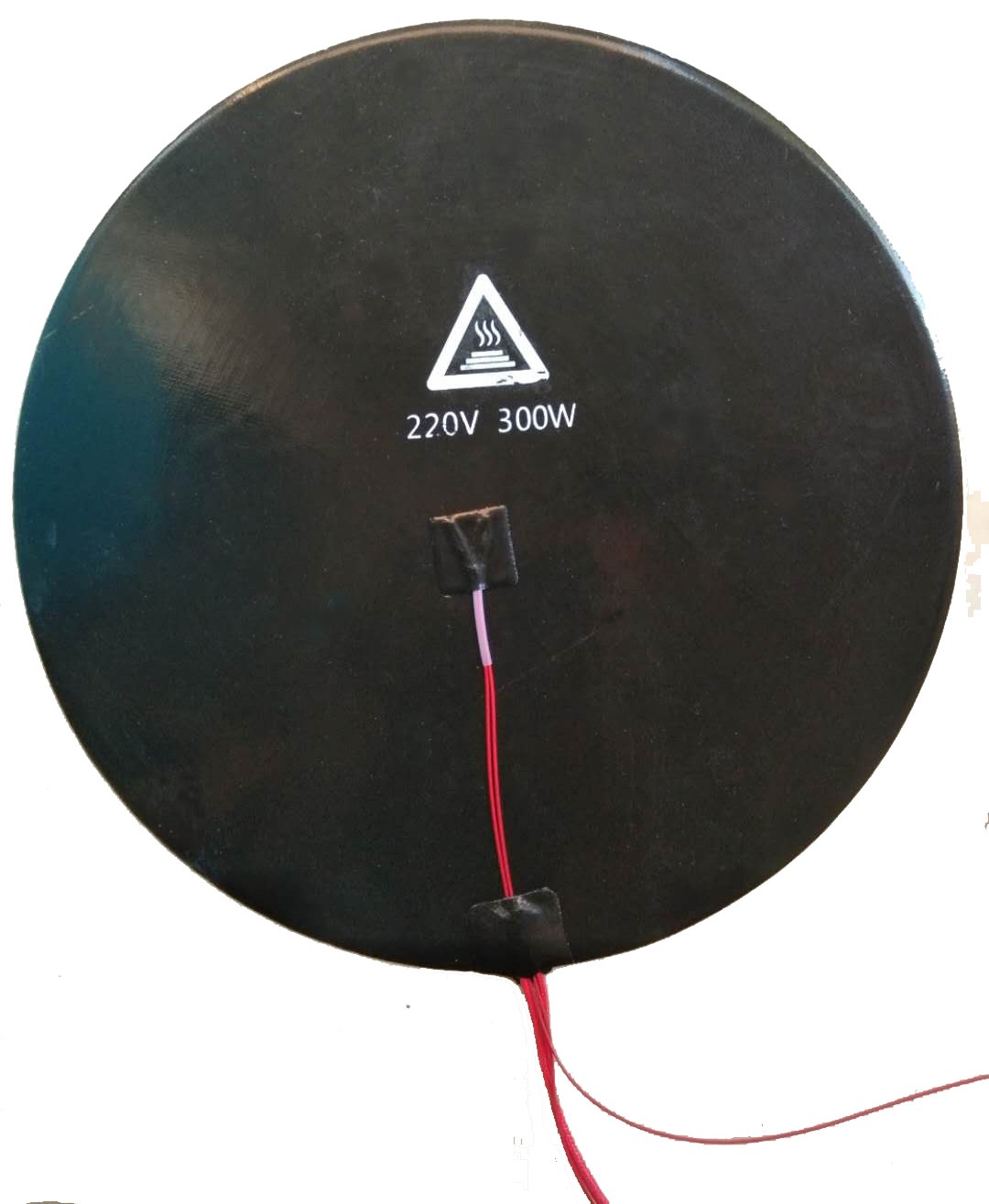

3D Printer Brick Hot Plate                                                                       3D Printer Black Round Heating Mat

400X400mm  120V  1000W                                                                            OD300mm  220V   300W

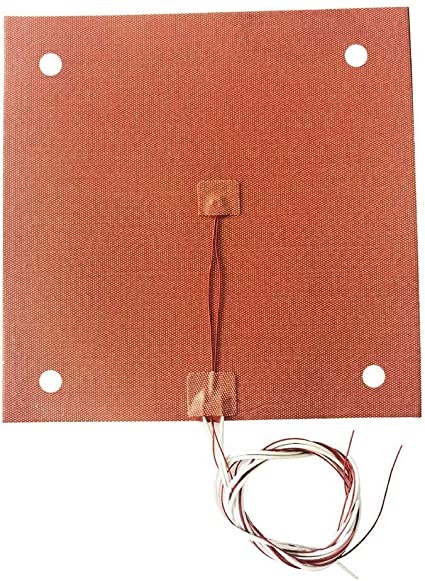

3D Printer Brick Mat Heaters                                                                        3D Printer Brick Heat Mat

300X400mm  110/220V   600W                                                                    500X500mm  240V  1500W
